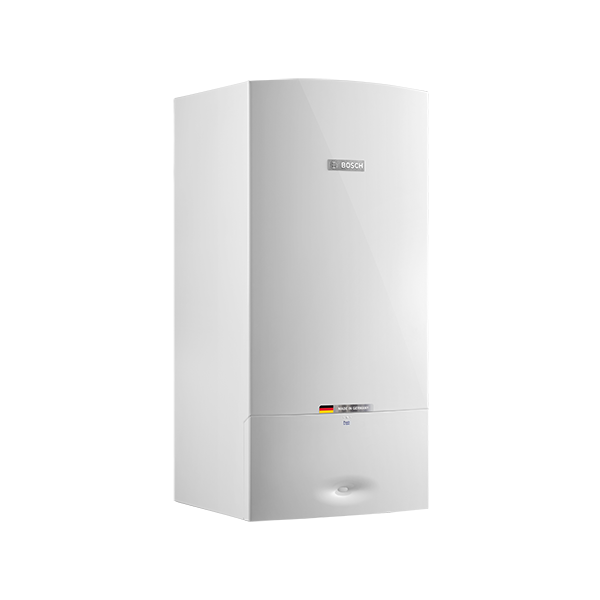

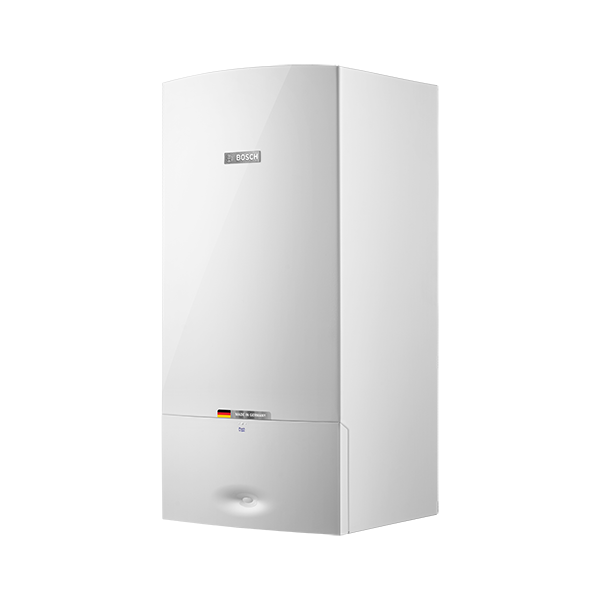

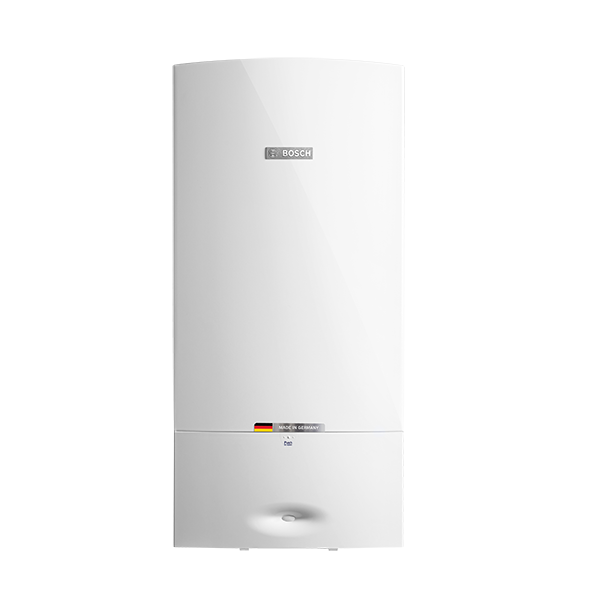

GZT 2C WeP
True Germany, true enjoyment
Overview
German original import, ten safety guarantee, 5-year warranty, rest assured that the choice, ultra-high thermal efficiency, ultra-quiet operation, accurate temperature control
Features & Benefits
- Original import of the whole machine
1) German Industry 4.0 lean production management
2) German precision manufacturing, excellent quality and extraordinary - Five-year warranty
From the date of purchase, the product can enjoy a five-year warranty from Bosch Service Center or authorized service providers.
Five-year warranty service provided by Bosch Service Center or authorized service provider.
Professional technical support and after-sales service, more worry-free - Ten safety guarantees
Professional protection of family members, reliable and durable - Precise temperature control, double the comfort
1) equipped with MR100 intelligent heating controller, using "thermostatic flame control technology"
2) Support Bosch EMS high-end controller, compatible with all Bosch NCS control modules
3) More accurate temperature control, double the comfort and save energy - Super silent operation
1) ELICA dual air speed management system, low speed operation under partial load, effectively reduce noise
2) Grundfos adjustable water pump, according to the actual situation to adjust the gear, small gear operation noise is lower - high efficiency combustion, about 93% * ultra-high heating thermal efficiency
- Bosch CHG hydronic module
Vertical plate exchange
Using Bosch oversized volume plate heat exchanger.
Up to 18 layers of water exchange channels, high efficiency heat exchange
HT3 intelligent control system German design and development, intelligent control of water temperature.
Excellent quality
HUBA high precision flow sensor
can sense small water flow changes, fast
fast response for load adjustment and realize
stable water temperature control
Grundfos adjustable pumps
Low pressure safety and user-friendly operation
Technical data
| 单位 | 博世欧洲臻享壁挂炉 | ||||||
| 描述 | 24 kW两用炉 | 24 kW系统炉 | 28 kW两用炉 | 28 kW系统炉 | 35 kW两用炉 | 35 kW系统炉 | |
| 型号 | L1P27-(ZWC24-4MFA23) | N1P27-(ZSC24-4MFA23) | L1P31-(ZWC28-4MFA23) | N1P31-(ZSC28-4MFA23) | L1P38-(ZWC35-4MFA23) | N1P38-(ZSC35-4MFA23) | |
| 燃气种类 | 天然气 | 天然气 | 天然气 | 天然气 | 天然气 | 天然气 | |
| 最大额定热输入功率(供暖) | kW | 26.7 | 26.7 | 31.3 | 31.3 | 38.3 | 38.3 |
| 最大额定输出功率(供暖) | kW | 24 | 24 | 28.1 | 28.1 | 34.9 | 34.9 |
| 供暖系统允许的最大压力(PMs) | bar | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 |
| 最高采暖出水温度 | ℃ | 88 | 88 | 88 | |||
| 出水温度范围 | ℃ | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 |
| 最小工作压力 | MPa | 0.02 | 0.02 | 0.02 | 0.02 | 0.02 | 0.02 |
| 额定燃气压力(天然气12T) | Pa | 2,000 | 2,000 | 2,000 | 2,000 | 2,000 | 2,000 |
| 电压 | Ac...V | 220 | 220 | 220 | 220 | 220 | 220 |
| 重量(不含包装) | kg | 42.9 | 41.4 | 44.9 | 43.0 | 47.7 | 46.2 |
| 尺寸(高x宽x厚) | mm | 850x400x370 | 850x400x370 | 850x440x370 | 850x440x370 | 850x480x370 | 850x480x370 |
| 描述 |
| 型号 |
| 燃气种类 |
| 最大额定热输入功率(供暖) |
| 最大额定输出功率(供暖) |
| 供暖系统允许的最大压力(PMs) |
| 最高采暖出水温度 |
| 出水温度范围 |
| 最小工作压力 |
| 额定燃气压力(天然气12T) |
| 电压 |
| 重量(不含包装) |
| 尺寸(高x宽x厚) |
 |
