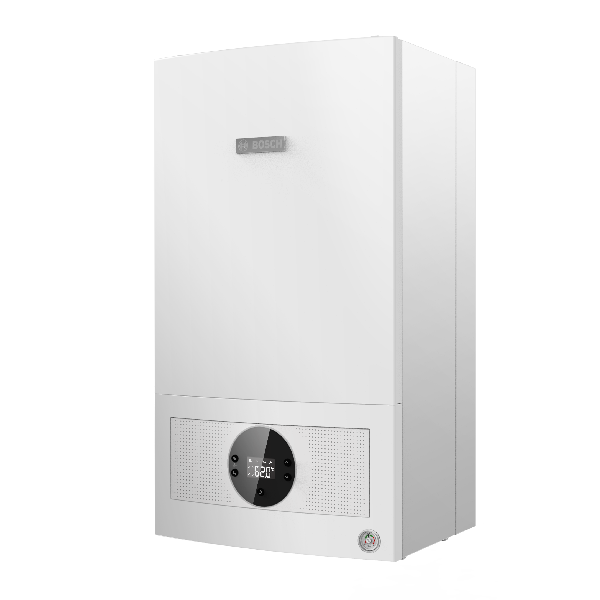

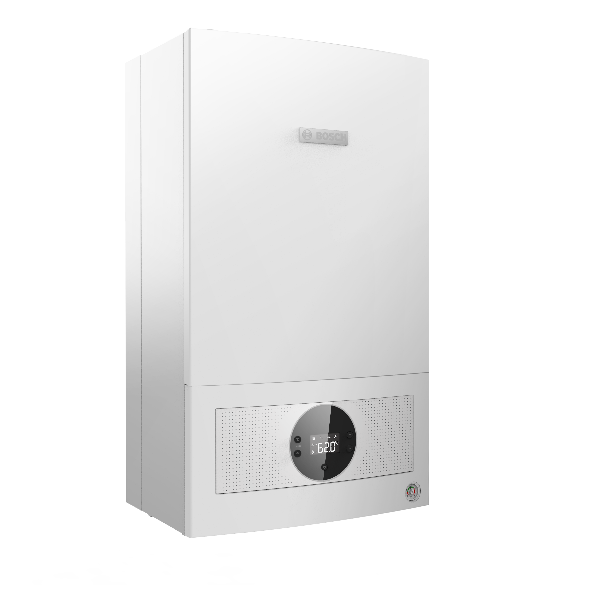

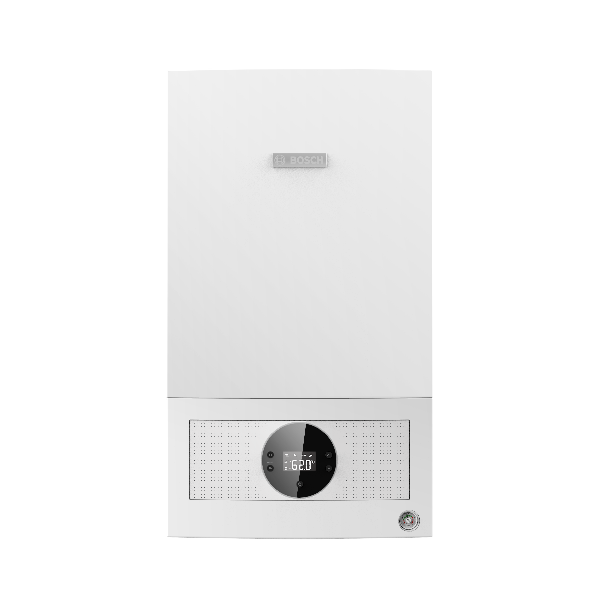

Gaz 6300 W (G6300W)
Not afraid of cold, warm with you
Overview
No fear of severe cold Small heating, large hot water Compact structure Quiet design High cost performance
Features & Benefits
No fear of severe cold
Operating noise is as low as 43dB-designed to provide a quiet and beautiful living environment, and enjoy comfortable heating easily
- It can be applied to the climatic conditions in the severe cold area in the north, not afraid of extreme environmental temperature tests, and flexibly respond to various climatic conditions
- The sister model has passed the test of the cold winter, mature and reliable
- Ingenious design to match the different needs of heating and hot water. Considering that the heating load of the wall-hung boiler is usually less than the load of domestic hot water, G6300 W can be operated at a smaller heating load, and the practical heating power design can reduce gas consumption;
- When bathing, it automatically switches to larger load operation, providing surging heat, hot water responds quickly, and fully enjoying the fun of bathing
- Body size 700*400*299, flexible to adapt to various installation spaces, compact and beautiful
- It is a retail model with super high cost performance, so that more people can enjoy comfortable heating.
Technical data
| 单位 | L1P18-G6300W 16/18 CT | L1P25-G6300W 22/24 CT | |
| 功率 | |||
| 最大额定供暖热输出 | kW | 16 | 22 |
| 最大额定供暖热输入 | kW | 17.9 | 24.7 |
| 最小额定供暖热输出 | kW | 5.1 | 6.9 |
| 最小额定供暖热输入 | kW | 6 | 8.1 |
| 最大热水额定热输出 | kW | 18 | 24 |
| 最大热水额定热输入 | kW | 20.2 | 26.9 |
| 最小热水额定热输出 | kW | 5.1 | 6.9 |
| 最小热水额定热输入 | kW | 6 | 8.1 |
| 燃气 | |||
| 燃气种类 | 天然气12 T | 天然气12 T | |
| 额定燃气压力（天然气12 T） | Pa | 2,000 | 2,000 |
| 最大燃气耗量 (Hi=9.5 kWh/m³) | (15 ℃) m³/h | 1.89 | 2.61 |
| 采暖 | |||
| 供暖最大电功率 | W | <130 | <150 |
| 采暖出水温度设置范围 | ℃ | 40~82 | 40~82 |
| 供暖系统允许的最大压力(PMS) | bar | 3 | 3 |
| 膨胀水箱预充压力 | bar | 0.5 | 0.5 |
| 膨胀水箱总容积 | L | 8 | 8 |
| 膨胀水箱实际容积（EN13831） | L | 6 | 6 |
| 生活热水 | |||
| 标称产热水率GB 25034（Δt=30 K） | kg/min | 8.6 | 11.4 |
| 热水出水温度范围 | ℃ | 35~60 | 35~60 |
| 允许的最大热水压力 | bar | 10 | 10 |
| 最小供水压力 | bar | 0.3 | 0.3 |
| 烟气参数 | |||
| 最高/最低烟气温度 | ℃ | 155/92 | 155/92 |
| NOx含量 | mg/kWh | 132 | 132 |
| NOx等级 | - | 3 | 3 |
| 烟气接口 | mm | 60/100 | 60/100 |
| 安装条件 | |||
| 海拔 | m | 0~1500 | 0~1500 |
| 设备环境温度 | ℃ | 0~50 | 0~50 |
| 烟管室外侧环境温度 | ℃ | -30~50 | -30~50 |
| 烟管室外侧环境风速 | m/s | <12.5 | <12.5 |
| 一般参数 | |||
| 电源电压 | AC...V | 220 | 220 |
| 频率 | Hz | 50 | 50 |
| 根据GB 20665标准规定的能效等级 | - | 2 | 2 |
| 防水等级 | - | IPx4D | IPx4D |
| 重量 (不含包装) | kg | 36 | 38 |
| 尺寸 (高x宽x厚) | mm | 700x400x299 | 700x400x299 |
| 功率 |
| 最大额定供暖热输出 |
| 最大额定供暖热输入 |
| 最小额定供暖热输出 |
| 最小额定供暖热输入 |
| 最大热水额定热输出 |
| 最大热水额定热输入 |
| 最小热水额定热输出 |
| 最小热水额定热输入 |
| 燃气 |
| 燃气种类 |
| 额定燃气压力（天然气12 T） |
| 最大燃气耗量 (Hi=9.5 kWh/m³) |
| 采暖 |
| 供暖最大电功率 |
| 采暖出水温度设置范围 |
| 供暖系统允许的最大压力(PMS) |
| 膨胀水箱预充压力 |
| 膨胀水箱总容积 |
| 膨胀水箱实际容积（EN13831） |
| 生活热水 |
| 标称产热水率GB 25034（Δt=30 K） |
| 热水出水温度范围 |
| 允许的最大热水压力 |
| 最小供水压力 |
| 烟气参数 |
| 最高/最低烟气温度 |
| NOx含量 |
| NOx等级 |
| 烟气接口 |
| 安装条件 |
| 海拔 |
| 设备环境温度 |
| 烟管室外侧环境温度 |
| 烟管室外侧环境风速 |
| 一般参数 |
| 电源电压 |
| 频率 |
| 根据GB 20665标准规定的能效等级 |
| 防水等级 |
| 重量 (不含包装) |
| 尺寸 (高x宽x厚) |
 |
